Buick Enclave: Specifications, Diagnostic Information and Procedures
SPECIFICATIONS
FASTENER TIGHTENING SPECIFICATIONS

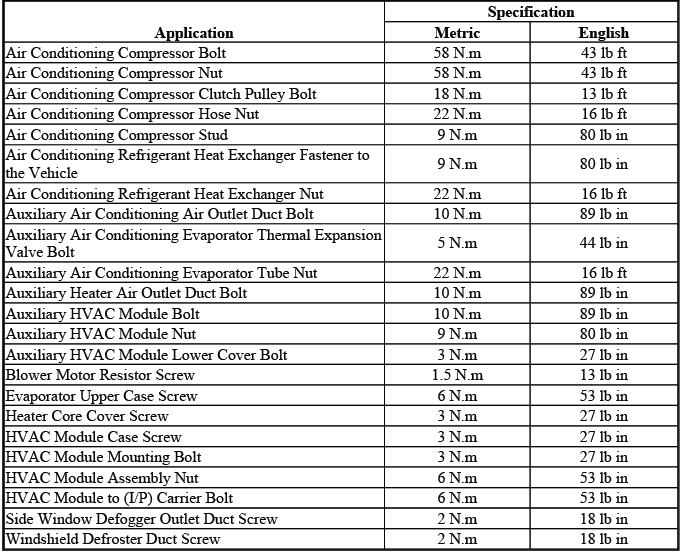

Fastener Tightening Specifications
REFRIGERANT SYSTEM SPECIFICATIONS

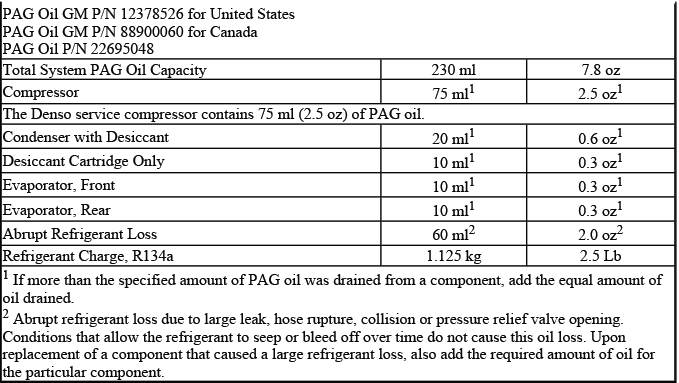

Refrigerant System Specifications
DIAGNOSTIC INFORMATION AND PROCEDURES
LEAK TESTING
Special Tools
- J 39400-A Halogen Leak Detector
- J 41447 R-134A A/C Tracer Dye-Box of 24
- J 42220 Universal 12V Leak Detection Lamp
- J 43872 Fluorescent Dye Cleaner
- J 46297 A/C Dye Injector Kit
- J 46297-12 Replacement Dye Cartridges
Refrigerant Leak Testing
NOTE: General Motors vehicles are now manufactured with fluorescent dye installed directly into the air conditioning (A/C) system.
The fluorescent dye mixes and flows with the polyalkylene glycol (PAG) oil throughout the refrigerant system.
Verifying some passive leaks may require using the J 39400-A halogen leak detector, even though the A/C system contains fluorescent dye.
The only time that adding additional fluorescent dye is required is after flushing the A/C system.
Fluorescent Leak Detector
Fluorescent dye will assist in locating any leaks in the A/C system.
- Condensation on the evaporator core or the refrigerant lines may wash the PAG oil and fluorescent dye away from the actual leak. Condensation may also carry dye through the HVAC module drain.
NOTE: PAG oil is water soluble.
- Leaks in the A/C system will be indicated in a light green or yellow
color when using the leak detection
lamp.
Use the leak detection lamp in the following areas:
- All fittings or connections that use seal washers or O-rings
- All of the A/C components
- The A/C compressor shaft seal
- The A/C hoses and pressure switches
- The HVAC module drain tube, if the evaporator core is suspected of leaking
- The service port sealing caps
The sealing cap is the primary seal for the service ports.
- Follow the instructions supplied with the J 42220 universal 12V leak detection lamp.
- To prevent false diagnosis in the future, thoroughly clean the residual dye from any area where leaks were found. Use a rag and the approved J 43872 fluorescent dye cleaner.
Fluorescent Dye Injection
- Not all of the fluorescent dyes are compatible with PAG oil. Some types of dye decrease the oil viscosity or may chemically react with the oil.
NOTE: Use only fluorescent dye approved by General Motors.
- J 41447 R-134A A/C tracer dye-box of 24 can be poured directly into a removed A/C component.
- J 46297-12 replacement dye cartridges is injected into the low side port using J 46297 A/C dye injector kit.
- R-134A leak detection dye requires time to work. Depending upon the leak rate, a leak may not become visible for between 15 minutes and 7 days.
- To prevent false diagnosis, thoroughly clean any residual dye from the service port with a rag and the approved J 43872 fluorescent dye cleaner.
NOTE: Do NOT overcharge the A/C system with dye. Use only one 7.39 ml (0.25 oz) charge.
Halogen Leak Detector
WARNING: Do not operate the detector in a combustible atmosphere since its sensor operates at high temperatures or personal injury and/or damage to the equipment may result.
Ensure that the vehicle has at least 0.45 kg (1 lb) of refrigerant in the A/C refrigeration system in order to perform a leak test. Refer to Refrigerant Recovery and Recharging for recharging the A/C system.
NOTE: Halogen leak detectors are sensitive to the following items:
- Windshield washing solutions
- Many solvents and cleaners
- Some adhesives used in the vehicle
Clean and dry all surfaces in order to prevent a false warning. Liquids will damage the detector.
NOTE: Follow a continuous path in order to ensure that you will not miss any possible leaks. Test all areas of the system for leaks.
Follow the instructions supplied with the J 39400-A halogen leak detector.
AIR CONDITIONING (A/C) SYSTEM PERFORMANCE TEST
This test measures the operating efficiency of the A/C system under the following conditions:
- The current ambient air temperature
- The current relative humidity
- The high side pressure of the A/C system
- The low side pressure of the A/C system
- The temperature of the air being discharged into the passenger compartment
Test Description
The numbers below refer to the step numbers on the diagnostic table.
1
This step determines if the A/C system has at least the minimum refrigerant charge required to operate the system without damage.
2
This step measures the performance of the A/C system.
3
This step is to allow for vehicle variations as well as high ambient temperatures.

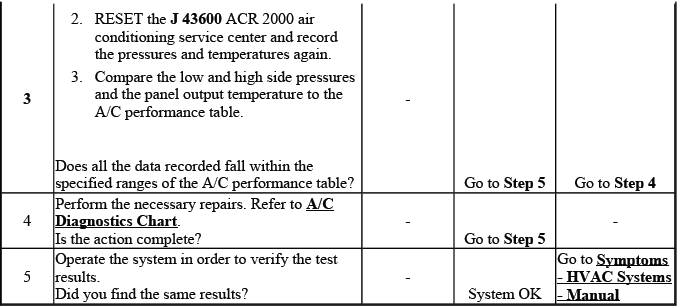

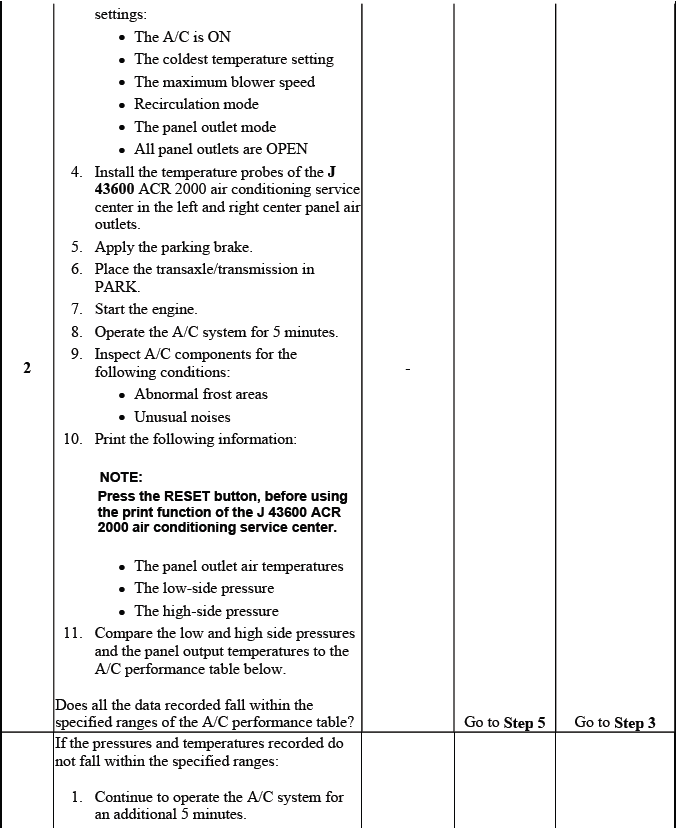

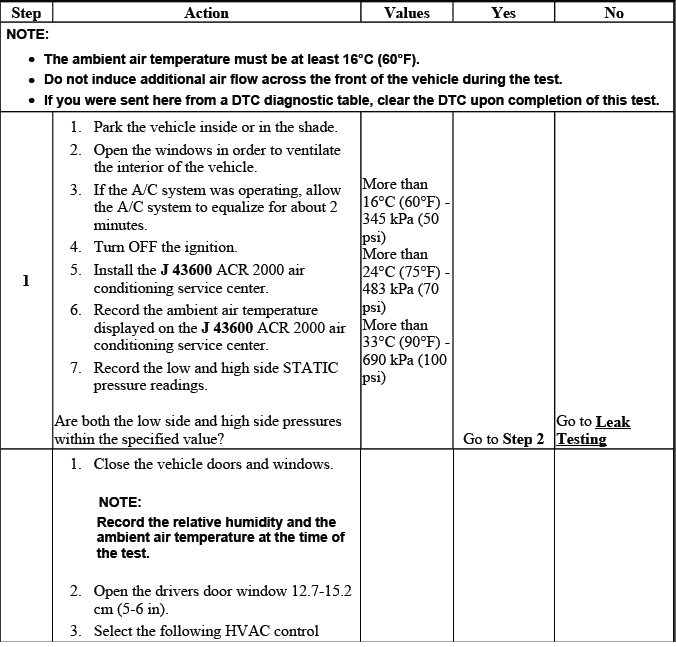

Air Conditioning (A/C) System Performance Test

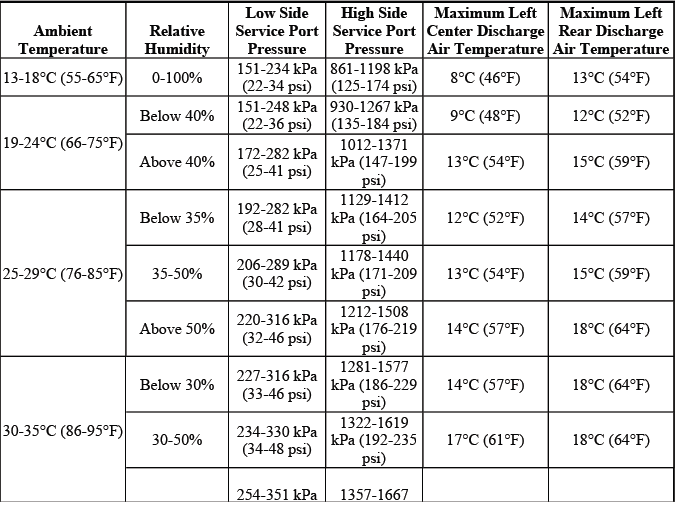

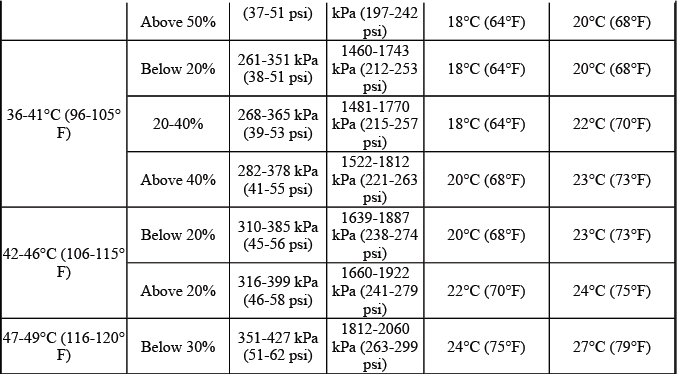

A/C Performance Table

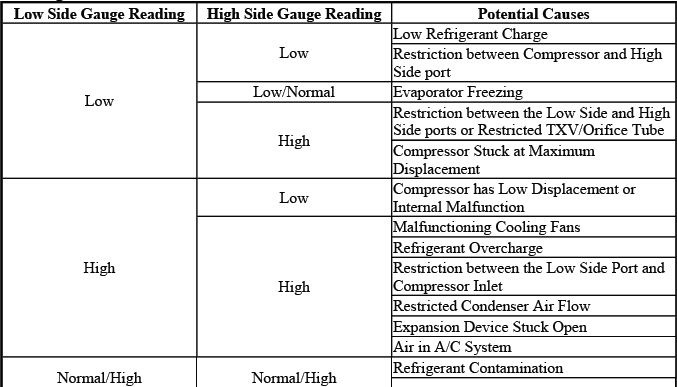

A/C DIAGNOSTICS CHART
A/C Diagnostics Chart

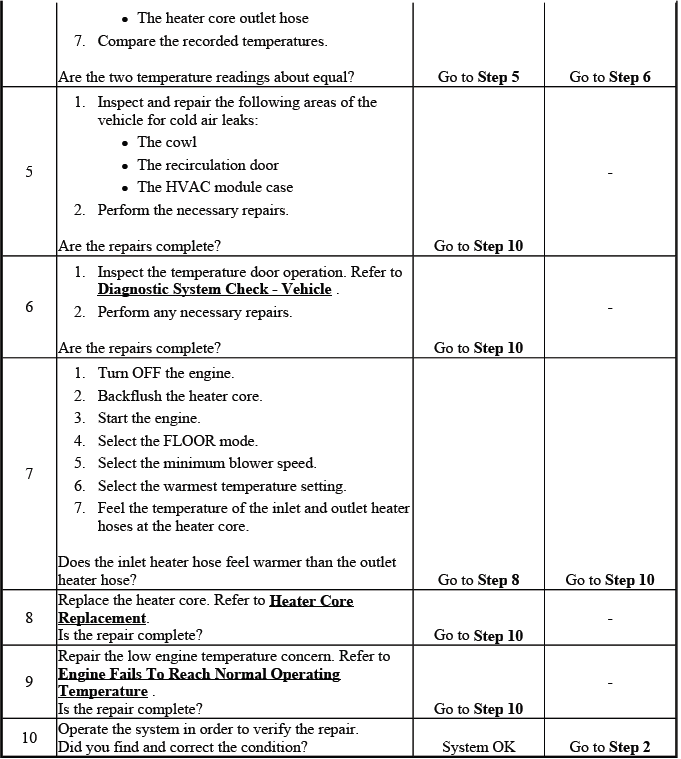

HEATING PERFORMANCE DIAGNOSTIC

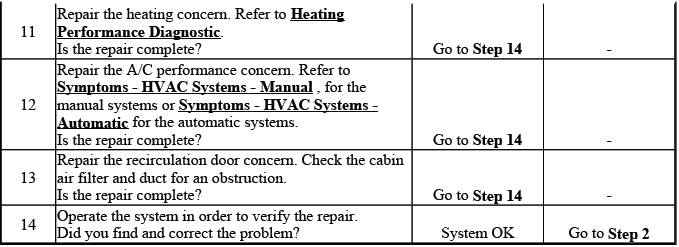

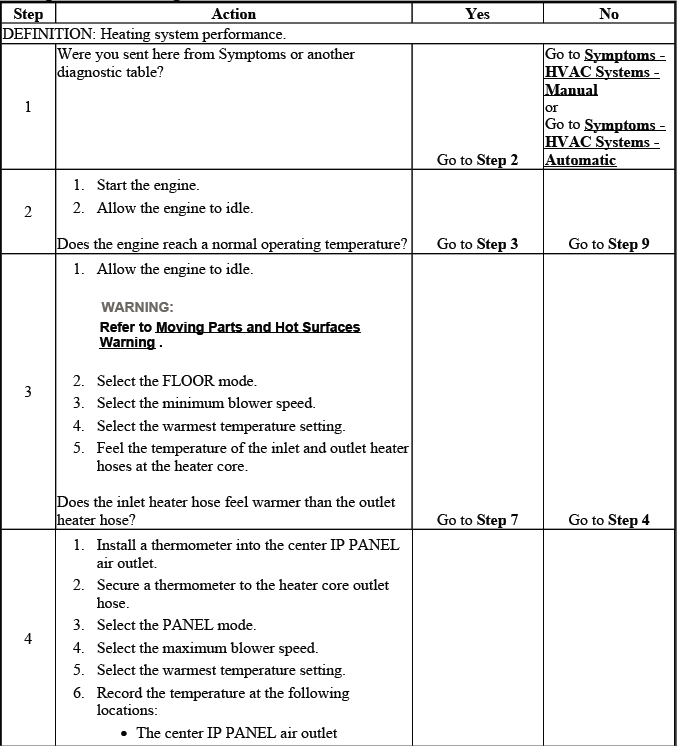

Heating Performance Diagnostic
DEFROSTING INSUFFICIENT

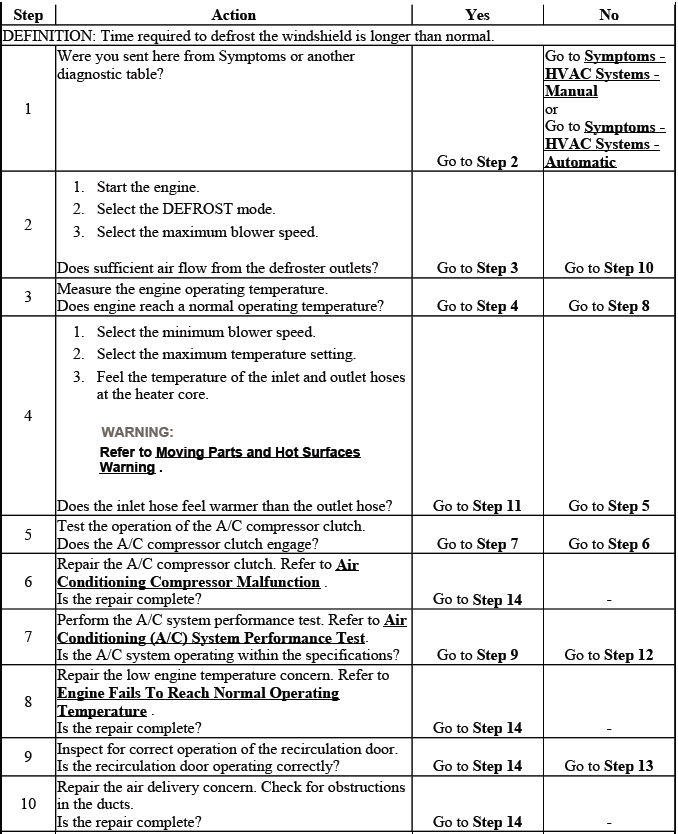

Defrosting Insufficient

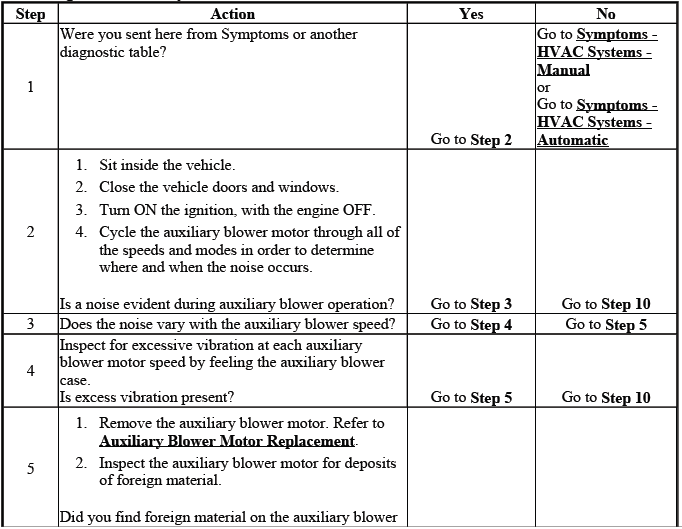

NOISE DIAGNOSIS - AUXILIARY BLOWER MOTOR

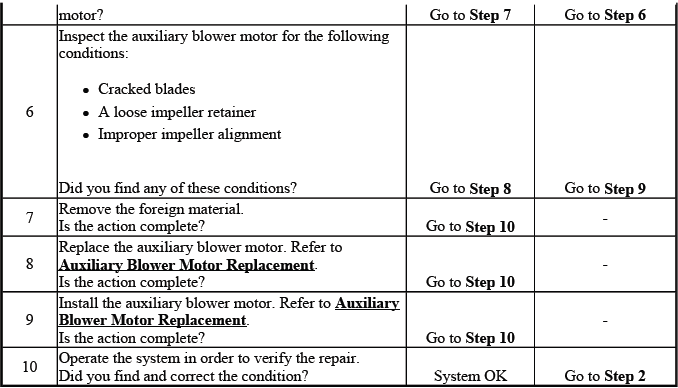

Noise Diagnosis - Auxiliary Blower Motor

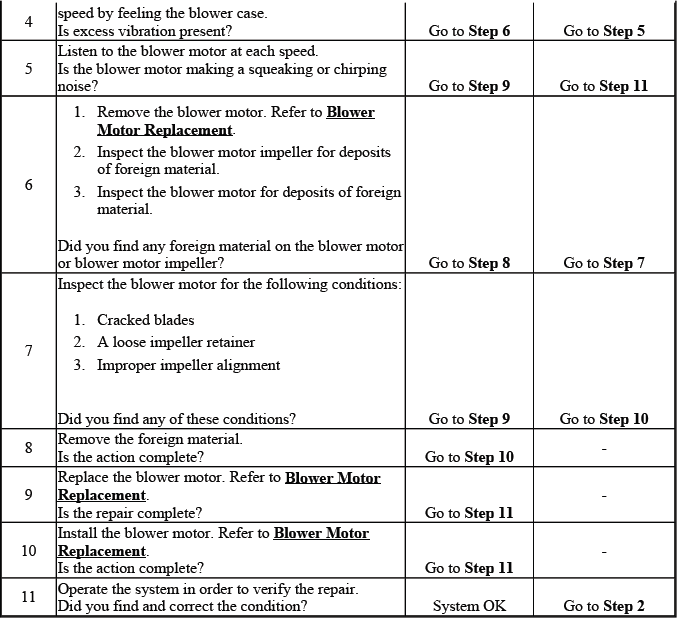

NOISE DIAGNOSIS - BLOWER MOTOR

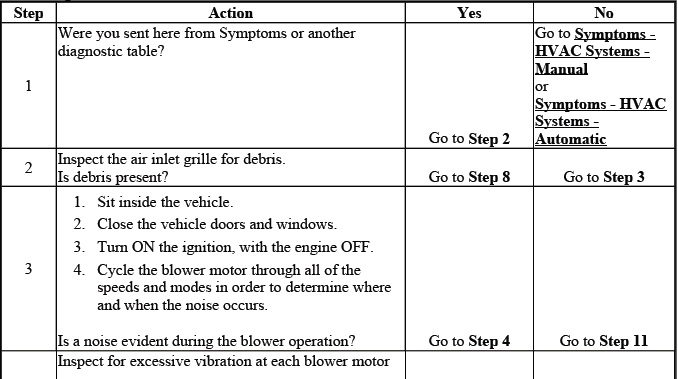

Noise Diagnosis - Blower Motor
AIR CONDITIONING COMPRESSOR OIL DIAGNOSIS

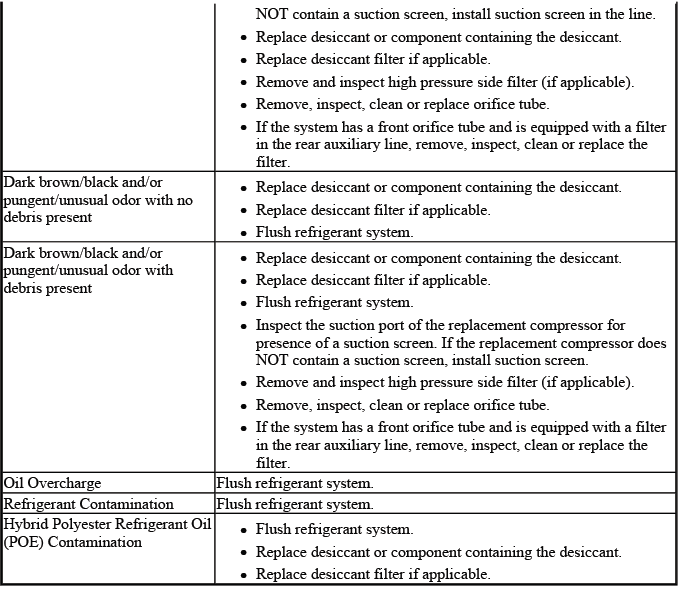

Air Conditioning Compressor Oil Diagnosis
NOISE DIAGNOSIS - AIR CONDITIONING (A/C) SYSTEM

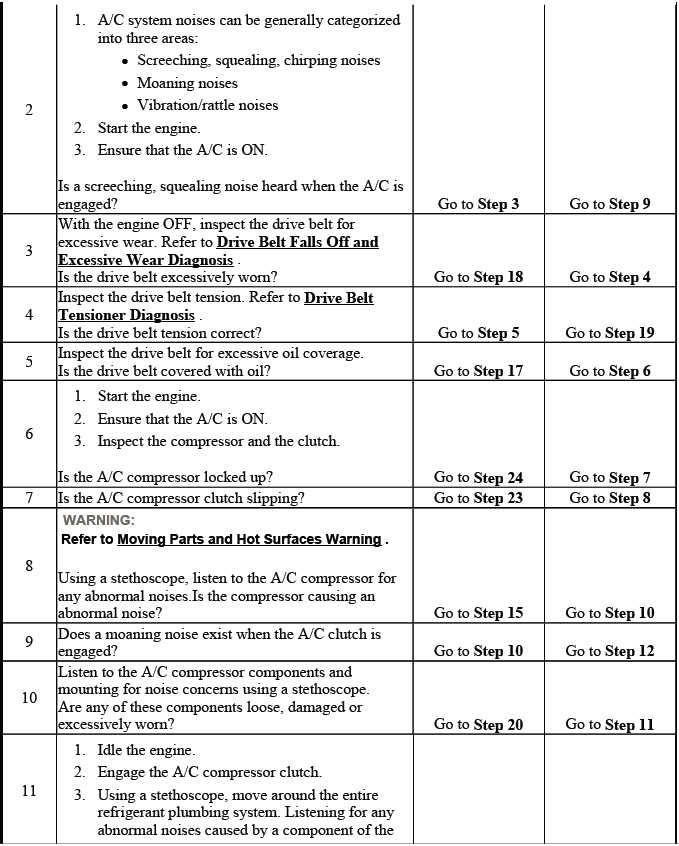

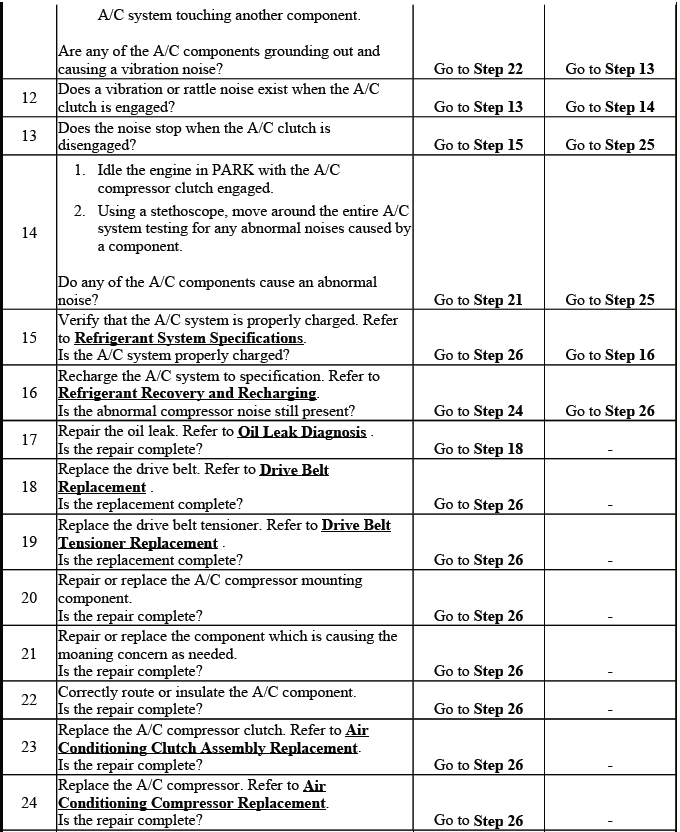

Noise Diagnosis - Air Conditioning (A/C) System

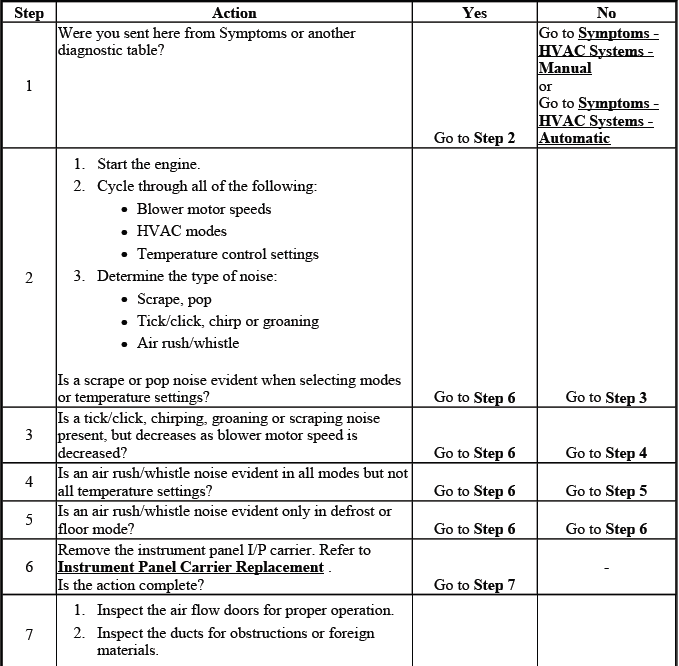

NOISE DIAGNOSIS - HVAC MODULE

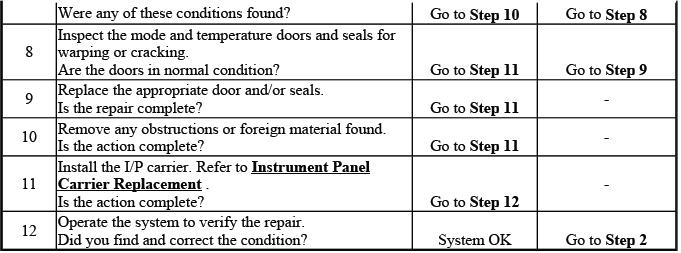

Noise Diagnosis - HVAC Module

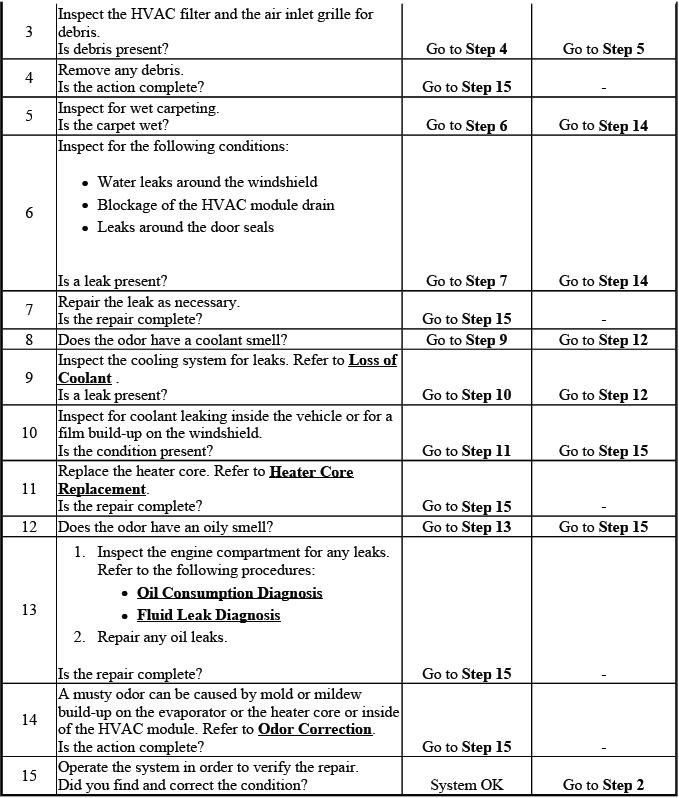

ODOR DIAGNOSIS

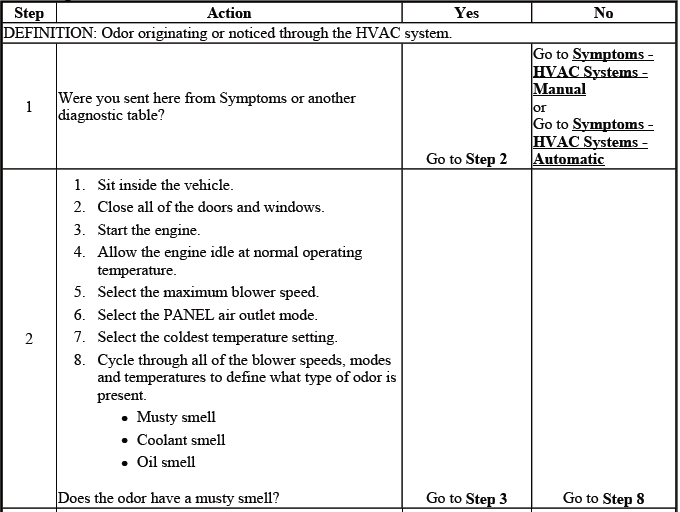

Odor Diagnosis
