Buick Enclave manuals

Buick Enclave: Cargo Cover. Cargo Tie-Downs. Cargo Management System

Buick Enclave 2008-2017 Owners Manual / Storage / Additional Storage Features / Cargo Cover. Cargo Tie-Downs. Cargo Management System

Cargo Cover

For vehicles equipped with a cargo cover, the cover can be used to help conceal items stored in the rear cargo area of the Buick Enclave.

To install the cargo cover, place the loops on each corner of the cover onto the four hooks located in the rear of the vehicle.

When the cargo cover is not being used, store it securely so it does not move around during driving, braking, or sudden maneuvers.

Cargo Tie-Downs

Four cargo tie-downs are located in the rear compartment of the vehicle.

The tie-downs can be used to help secure small loads and reduce movement of cargo while the vehicle is being driven.

Cargo Management System

This vehicle has a cargo management system located in the rear cargo area.

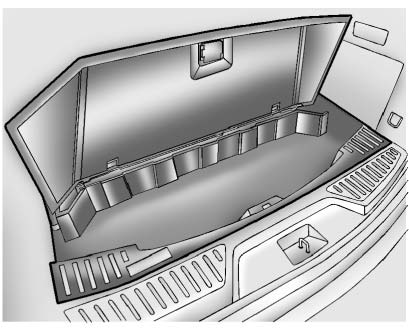

Cargo management cover removal procedure in the rear storage area

To remove the cargo management cover:

1. Open the cover. Once lifted, the cover remains in the open position.

2. Pull the cover upward while making sure the hinges at the rear of the cover are unhooked properly.

Warning icon about securely closing or removing the cargo management cover before drivingWARNING
An improperly latched and closed cargo cover, or a cargo cover left in the open position, could be thrown around inside the vehicle during a crash or sudden maneuver.

Someone could be injured.

Always return the cover to the closed position and make sure it is latched before driving. If the cover is removed, store it outside of the vehicle. When the cover is reinstalled, always confirm that it is securely attached.

3. Remove the cover from the vehicle and store it outside of the vehicle in a safe location.
